Customized Mechanical Bar Screen for Residential & Urban Sewage | Carbon Steel/Stainless Steel | Efficient Wastewater Treatment
To Our Valued Customers:
While we focus on substance over style, our expertise lies in manufacturing comprehensive wastewater treatment solutions. With over a decade of experience, we provide reliable, high-performance equipment tailored to your needs. Feel free to contact us with any inquiries—we respond promptly.
Material Options: Carbon steel or stainless steel construction for durability and corrosion resistance.
Customizable Design: Tailored dimensions (length, width, bar spacing) to fit specific channel requirements.
Neat & Robust Structure: Simplified installation, low maintenance, and long-term operational stability.
High Efficiency: Mechanically cleaned system ensures continuous solids removal with minimal downtime.
Advanced Drive System: Cycloidal pinwheel or helical gear reducer motor for quiet, compact, and smooth operation.
| Bar Gap (mm) | Water Flow Rate (m³/s) per Model | |||
|---|---|---|---|---|
| SL-2500 | SL-3000 | SL-3500 | SL-4000 | |
| 40 | 5.66 | 6.87 | 8.06 | 8.26 |
| 50 | 5.88 | 7.11 | 8.40 | 9.60 |
| 60 | 6.00 | 7.35 | 8.65 | 9.93 |
| 70 | 6.24 | 7.50 | 8.80 | 10.14 |
| ... | ... | ... | ... | ... |
| 150 | 6.63 | 8.04 | 9.45 | 10.86 |
Other Parameters:
Origin Water Depth: 3.0 m
Water Speed: 1.0 m/s
Installation: Customizable channel width and depth
Control: Local/remote automated operation
10+ Years of Expertise: Specialized in wastewater and sludge treatment solutions.
German Technology Integration: Enhanced product performance and reliability surpassing industry standards.
Premium Components: Only high-quality parts from trusted suppliers.
In-House R&D & Manufacturing: Full control over design, production, and quality assurance.
Ideal for intercepting solid debris in:
Residential and urban sewage systems
Municipal wastewater pretreatment
Pump stations and inflow channels

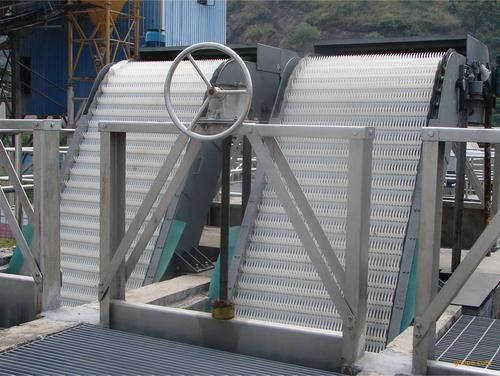

The mechanically cleaned bar screen operates via a rotary chain system with plough-shaped tines. As wastewater flows through, solids larger than the bar gap are captured. The rake plates, driven by a reducer motor, move clockwise to lift debris from the bottom to the top discharge point. Gravity-assisted cleaning ensures efficient solids separation without hydraulic short-circuiting.
Optimized Debris Handling: Oblique-tip rake teeth efficiently capture and remove large solids.
Overload Protection: Dual safety mechanisms (shear pin + overcurrent protection) prevent operational failures.
Anti-Short Circuit Design: Secondary screen prevents debris bypass, enhancing separation efficiency.
Low Maintenance: Integral frame structure reduces upkeep needs and extends service life.
Outline and Installation Chart
1.Motor Mount 2.Tooth Rake 3.Rack 4.Bottom Trash Rack 5.Guide Device 6.Driving Device 7.Slag Baffle 8.Bar Screen
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
