| Τόπος καταγωγής: | Jiangsu China |
| Μάρκα: | longdai |
| Πιστοποίηση: | ISO9001 CE |
| Αριθμό μοντέλου: | LS-200 |
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | Negotiatable |
| Συσκευασία λεπτομέρειες: | Εξαγωγή polywood |
| Χρόνος παράδοσης: | 20 ημέρες |
| Όροι πληρωμής: | L/c, t/t, d/a, d/p |
| Δυνατότητα προσφοράς: | 2500 σετ ανά έτος |
| Όνομα προϊόντος: | Σπειροειδής μεταφορέας βιδών μεταφορέων | Υλικό: | 304 από ανοξείδωτο χάλυβα, SUS316L, ανθρακούχο χάλυβα |
|---|---|---|---|
| Ικανότητα: | 0,25-100 Μ3/ώρα | Εγγύηση: | 1 έτος |
| Εξουσία: | Προσαρμοσμένος | Δυναμικό: | 380V/220V/400V/230V |
| Μοτέρ: | SEW/NORD/Προσαρμογή | Βάρος: | 300-1500 KG |
| Παρέχεται υπηρεσία μετά την πώληση: | Υποστήριξη διαδικτυακής υποστήριξης, τεχνική υποστήριξη βίντεο | Εφαρμογή: | Γεωργία, χημική βιομηχανία |
| Τύπος: | Βίδα |

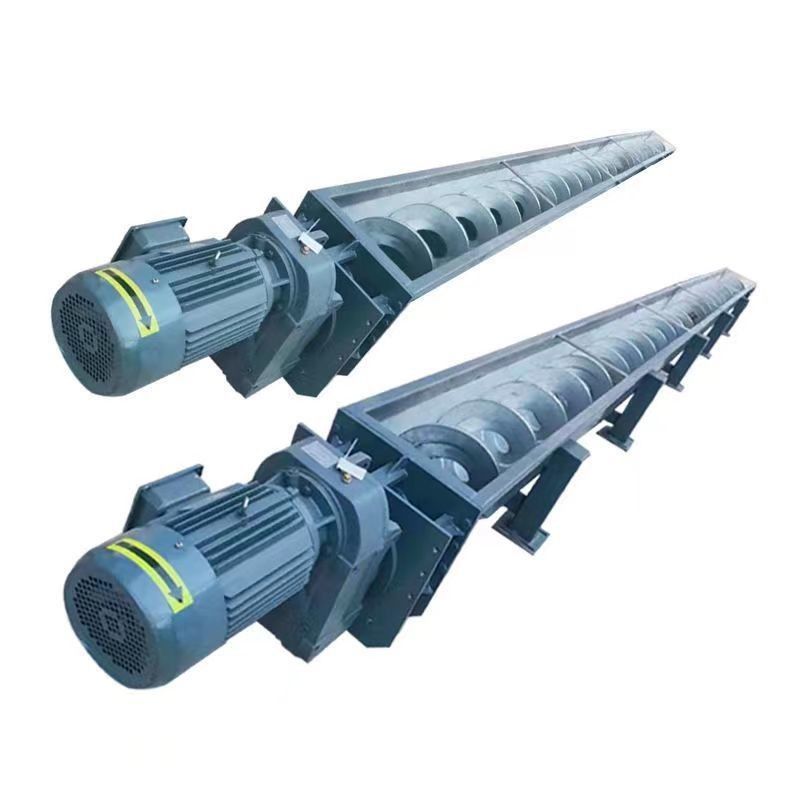

Stainless Steel Silo Screw Conveyor System for Cement, Grain & Powder Materials
Product Overview
This stainless steel screw conveyor is designed as a fully sealed system for integration with sludge dewatering equipment, efficiently transporting dewatered sludge to collection points while maintaining a clean and environmentally controlled operation. The system primarily consists of a U-shaped trough, feed hopper, cover plate, spiral assembly, wear-resistant lining, and drive mechanism.
Working Principle
Materials are conveyed through a fixed casing via a rotating spiral screw. The head and tail bearings are mounted externally for easy maintenance, while the suspended sliding bearings feature dust-proof sealing devices. The bearing bush utilizes powder metallurgy technology, with felt bushings specifically employed for cement transportation. The suspended shaft and spiral shaft are connected via a sliding block mechanism to ensure smooth and reliable operation.
Key Features
Automated Integration: Complete electrical protection system enables seamless joint control with sludge dewatering systems
Space-Saving Design: Compact structure with easy installation using expansion bolts
Customizable Configuration: Trough length, angle and feed hopper can be customized as required
Enhanced Durability: Wear-resistant lining material reduces noise and extends service life
Premium Materials: Spiral blades manufactured from stainless steel or manganese steel for superior strength and corrosion resistance
Environmentally Optimized: Fully sealed design prevents material leakage and contamination
Parameter
| arameters | spiral Nominal diameter (mm) spiral dia (mm) |
Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 | |||
| 185 | 235 | 285 | 320 | 385 | |||
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | ||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | ||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | ||
| Spiral speed n(r/min) | 12 to 16 | ||||||
| Motor N(KW) | 0.75-5.5 (according to L and angle) | ||||||
| installation size(mm) | A | 0+40 | |||||
| B | 0 + 110 | ||||||
| Bi | Matching with corresponding equipment | ||||||
| L | According to user requirements | ||||||
| Li | Matching with corresponding equipment | ||||||
| l_2 | (L-1000)/2-(L-71000)/3 | ||||||
| L3 | 250 | 250 | 300 | 350 | 400 | ||
| H | Matching with corresponding equipment | ||||||
| Hi | 140 | 165 | 188 | 210 | 240 | ||
| H2 | H-150 | ||||||
| H3 | Matching with corresponding equipment | ||||||
Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQ
Q: What certificates do you have? A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
